Description
Hella PART NO: 8JA 001 918-005
Hella Legacy PART NO: 4911
Product Description
Hella Front Indicator Lamp – Amber (Surface Mount)
A durable and reliable front indicator lamp designed for trucks, trailers, and commercial vehicles requiring dependable directional signalling.
Featuring a bright amber lens and robust housing, this lamp provides clear, highly visible indication for improved road safety and compliance.
Built to Hella’s heavy-duty standards, it is suited to demanding transport environments and offers long service life under vibration, weather exposure, and regular washdowns.
Ideal for replacement or new vehicle builds where a compact surface-mount indicator is required.
Specifications
Function: Front Direction Indicator
Lens Colour: Amber
Light Output: Amber
Mounting: Surface mount
Voltage: 12V DC
Housing Material: Durable impact-resistant plastic
Lens Material: High-impact plastic
Application: Front indicator for trucks, trailers & commercial vehicles
Compliance: ADR compliant for indicator lighting
Maximum Load: 16A with 1.5mm2 cable (total).
Maximum Load: 25A with 2.5mm2 cable (total).

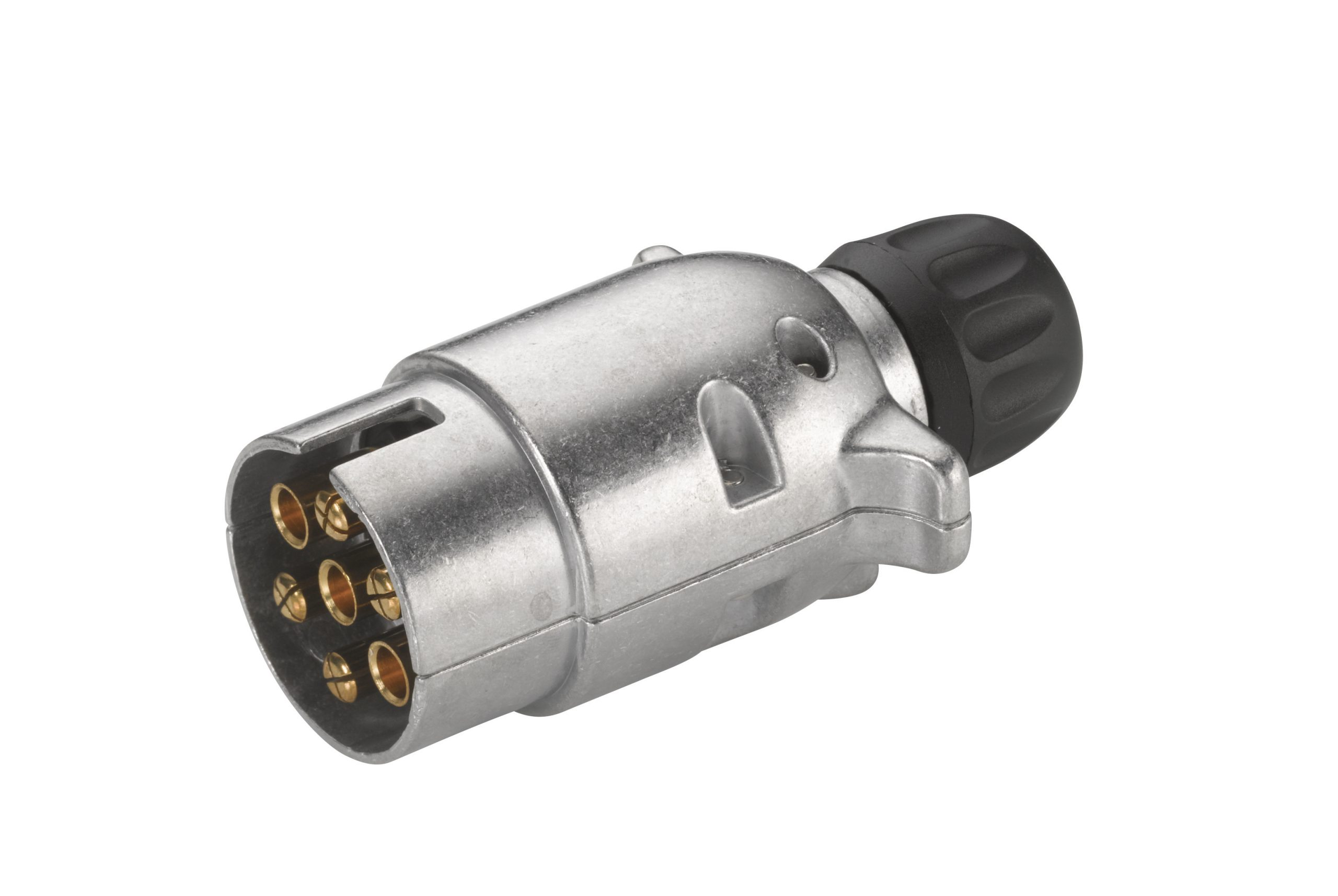

7 Pole Connector Wiring Specifications
| Terminal Number | Connect to | Colour |
| 1 | Left-hand flasher lamps | Yellow |
| 2 | Reversing lamps | Black |
| 3 | Earth return | White |
| 4 | Right-hand flasher lamps | Green |
| 5 | Service brakes (or Auxiliary) | Blue |
| 6 | Stop lamps | Red |
| 7 | Rear position, number plate and clearance lamps | Brown |
Where service brakes are not fitted, terminal no.5 may be used for auxiliaries.
